Cub IV Handwired Series
Cub IV Handwired Series
To select custom tolex and other options click "add to cart" button above.
Made to Order 3 Month Lead Time
15-Watt (2-EL84), 30-Watt (4-EL84), or 40-Watt (2-EL34)
Patented K Master® circuit
Foot switchable EF86 or 12AX7 pre-amp
Tube Reverb (optional)
Foot switchable boost circuit - (Foot Switch Included)
Bad Cat raises the bar yet again and offers an update on the classic Cub circuit. The all new Cub IV features a switchable A or B valve in the first position pre-amp. You can select between 12AX7 or EF86 pre-amp tube by a toggle or foot switch. This new feature is drastically different sonically in gain structure, and character from any previous Cub models.
We have added a selectable gain fat boost on the bass and treble tone stack to run hotter, or choose to stay in standard Cub mode. This feature can be used as a classic gain boost. Combine this with the EF86 pre-amp and now you’re in territory previously unavailable from older Bad Cat Cub models.
All new for the Cub IV we have added a 5 way Depth control which unlike the previous Cub models , is active and live at all times. You can select the bypass capacitor and shape the over-all low frequencies. This is especially useful when playing through a bridge position pickup on a tele or strat style guitar. You can dial in amazing full and tight lows and create sounds unavailable until now.
A two button foot switch is included. Button one controls the selection of the EF86 or 12AX7 pre-amp. The second button offers the ability to punch in the added gain on the tone stack. With the foot switch you can go from chiming clean to crunch, and all the way to the wide open.
Patented K Master®
Gain up the power amp section while leaving the pre-amp sparkling clean? Yes. Imagine getting a full 15 watts of clean headroom out of a 15 watt amp, or a full 30 out of a 30. Turn down the master volume to bedroom low all while maintaining your tone intact. Not only is this possible it’s also useful for guitar players.
Power amp gain is different than pre-amp gain. It feels, sounds and even looks different. Master volume has always been misnamed. It should have been called master attenuation. Until now master volumes were unable to do anything, but attenuate. The drive to the power section was always dependent on the drive coming from the pre-amp.
Now Bad Cat has figured out a way to separate the pre-amp from the power amp gain, and calling it the K Master®. Before this you couldn't drive the power amp hard without pushing the pre-amp into saturation. The K Master® patent pending technology has allowed us to re-invent the concept of the master volume. Bad Cat is now offering the K Master® in the Cub III Series.
Power: 15-Watt (2-EL84), 30-Watt (4-EL84), or 40-Watt (2-EL34)
Proprietary Bad Cat Celestion Speaker
Impedance: 4, 8, 16 ohms

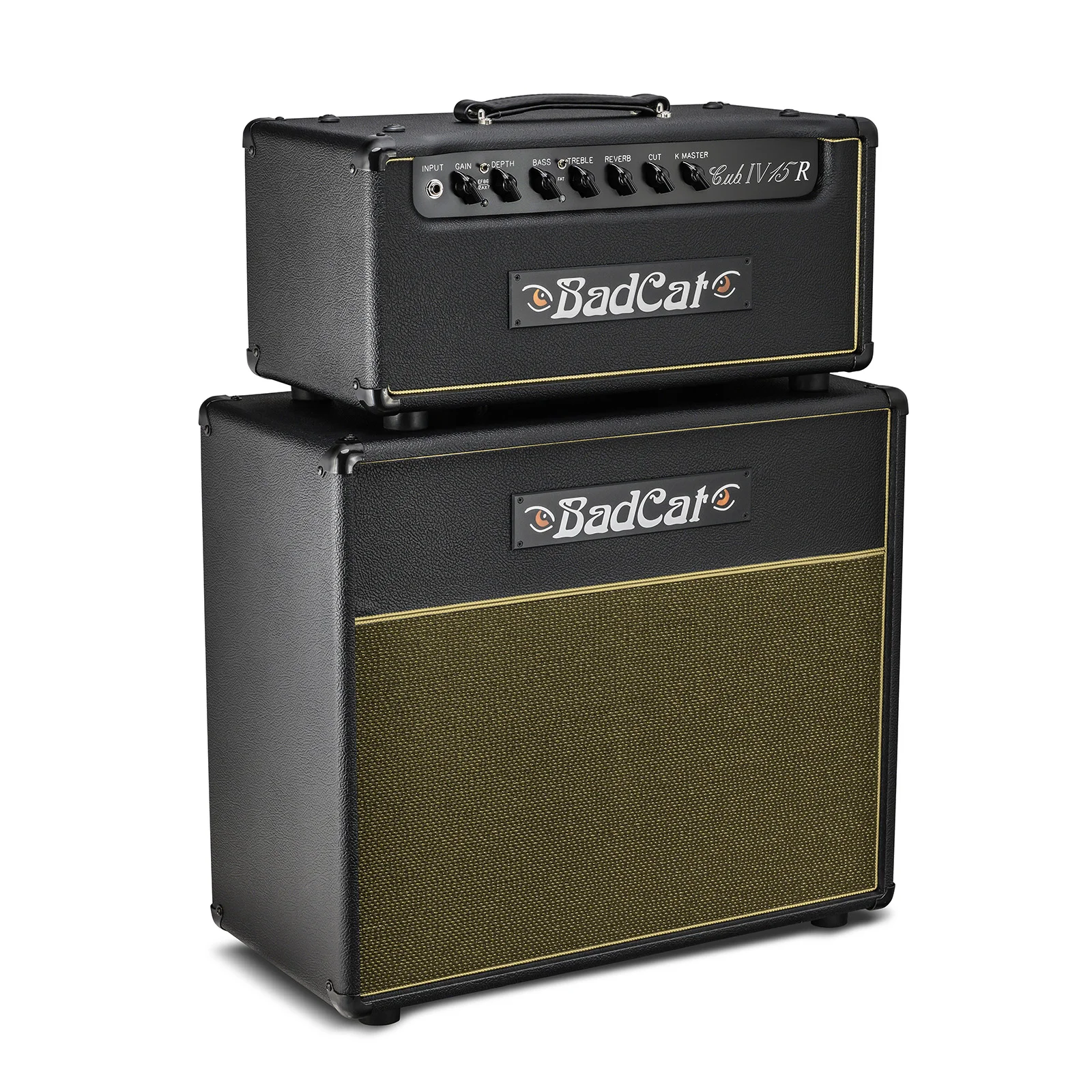

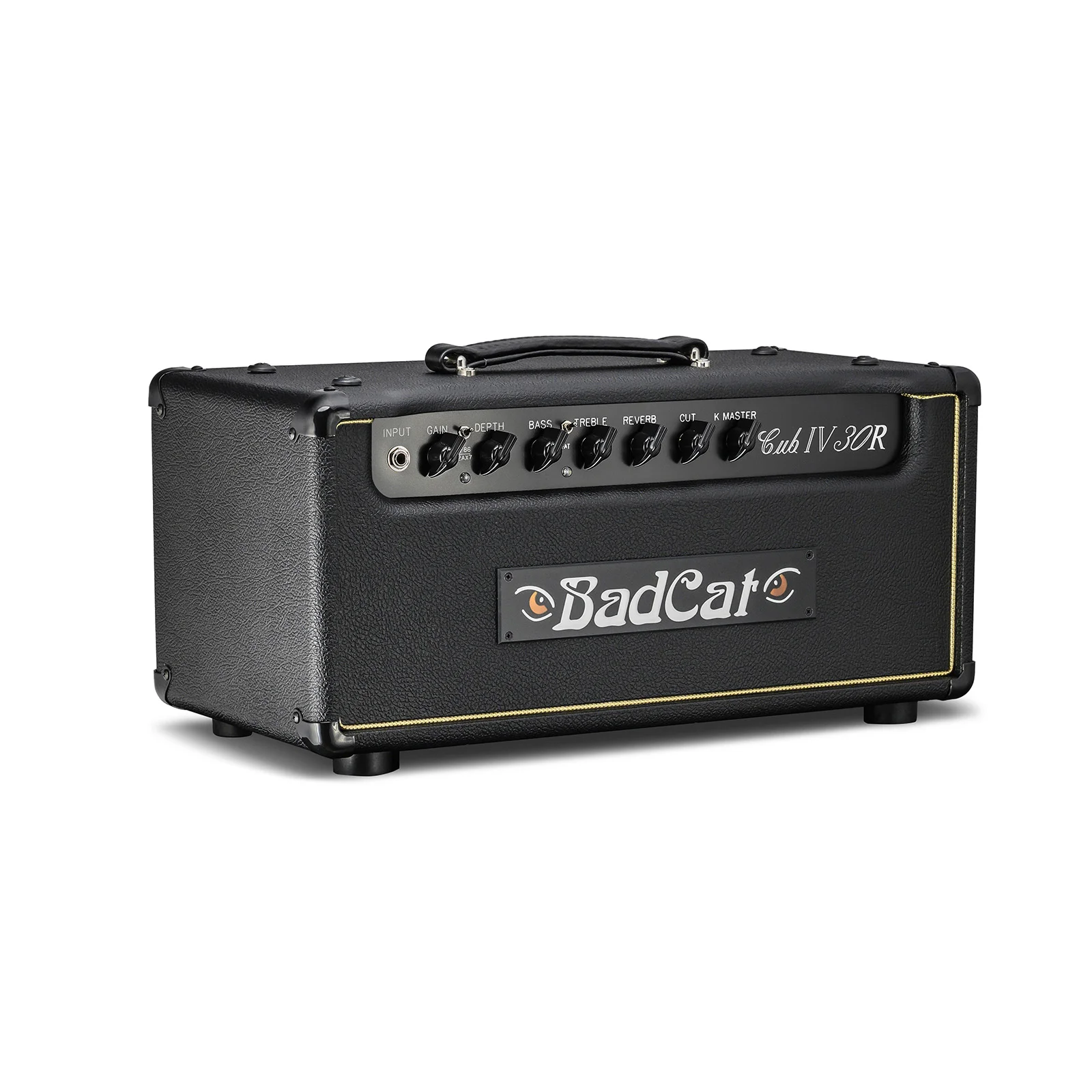

Available Configuration: Head Shell, 1x12 Combo
Cabinet Material: 13' Ply Baltic Birch
Power Tubes: 2 EL84, 4 EL84, or 2 EL34
Pre-Amp Channel 1: 12AX7 OR EF86
Pre-Amp Channel 2: N/A
Reverb: 2 12AX7
Rectifier Tube: GZ34
Operating Manuals & Tube Charts
Cub IV15R Tube Chart
Cub IV30R Tube Chart
Cub IV40R Tube Chart
When you are dropping that hard earned coin on a new amplifier, we know that you want to be making an investment that will last a lifetime. With thousands of different color and option combos you have full control over what you amp will look like. We believe you should be getting the amp of your dreams. Even if it is fluorescent green and tweed. Yes you can choose that. Wouldn't be our first choice, but hey. We aren't the ones buying the amp.
Take a look at the variety of tolex, grill cloth, handle and corner options. Then select whether you want a head or combo then select add to cart. Before taking you to the cart to checkout you will be able to select all of the options you want to see in your amp. If at any point you have questions in this process, please don't hesitate to reach out. We would be happy to discuss ideas and options. Oh and we love talking tone too!
Each tolex option below is available for use on both the cabinet and valence/face plate. You can have a matching cabinet and front face plate or mix and match tolex to give your amp or cabinet a one off look.
